Accessories for Metal Sheath Radiant Heaters

Input Controllers
Motor Driven Percentage Timers


Type Mounting Voltage Non-Inductive
Load Rating
Model No.
Flush 120V 1 phase 20 amp. PTO 115
W/ enclosure 120V 1 phase 20 amp. PTE 115
Flush 240V 1 phase 20 amp. PTO 230
W/ enclosure 240V 1 phase 20 amp. PTE 230

When 208, 240, 480, or 550V, three phase is required, a contactor is needed in conjunction with the timer.


Electronic Multi- Voltage Singles or 3-Phase Infinite Range Controller

Model - EIC
(Specify Voltage with ordering.)


Voltage Amps Phase Wt.
208, 240, 480, 550 40 1 or 3 12



Thermostats


Model
No.
Switch
Type
Temp.
Range
Type Amp Positive
Off
Carton
Wt. (Lbs.)
ASB120 Electronic 59° -86° SPST 120V 3-Wire 22A NO 0.5
ASB240 Electronic 59° -86° SPST 240V 3-Wire 22A NO 0.5
ASB2402 Electronic 59° -86° DPST 208/240V 4-Wire 22A YES 0.5
ATW240 Snap Action 59° -86° SPST  208/240V  2-WIRE 3 to 22 A NO 0.5
DA Snap Action 40° - 80° SPST 120/208/240V 22 YES 1.5
TS Snap Action 50° - 90° SPST 120/208/240V 22 YES 0.5
TD Snap Action 50° - 90° DPST 120/208/240V 22 YES 0.75

All Electronic Thermostats have photocell set back feature (Adj. from 0-15°)

Model No.   Carton Wt.(Lbs.)
AWT-2 Line voltage wall thermostat double line break, 25 amps at 208-240 VAC mounted in enclosed box. Range: 40°-100°F 1.5

Low Cost Single Phase Controllers


Model No. Load Rating Voltage
PC-12 1.75 KW 120 - 1 phase
PC-24 3.5 KW 240 - 1 phase

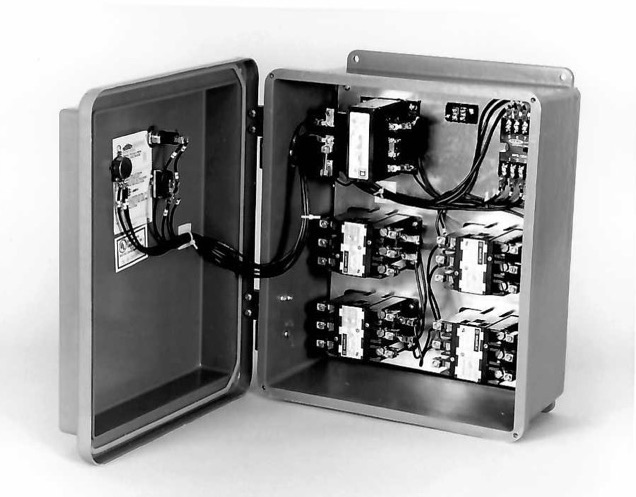

Magnetic Contactors


Model No. Model No. Amp Rating Per Pole No. of Poles
For Metal Sheath Heating Loads RC303 30 3
RC403 40 3

120V 60hz. coils standard, 208, 240 and 240V coils available.


Cords for Portable Heaters

Cords are shipped separately (not installed) and come in standard 25' and 50' lengths. The heater end of the cord has terminals and the proper size cord grip installed.

For use on Model Phase Cord No.
25' length
Cord No.
50' length
PHX452, PPH623 1 C10325 C10350
PHX454, 455, 456 1 C12325 C12350
SH135231 3 C8425 C8450
PPH623, 628
PPH643, 653, 663
SH135431 SH13553, 13563
3 C12425 C12450

Plugs not supplied


High Temperature Lead Wire

Manufactured to highest standards, lead wire is stranded nickel plated wire, insulated with Teflon and with fiberglass silicone impregnated overbraid. 460°F., 600 volt rating.

Model No. AWG Max Amps.
HTW-10 10 25
HTW-12 12 20

Pt. # R-3420 High temperature tongue connectors for the above sold separately.
